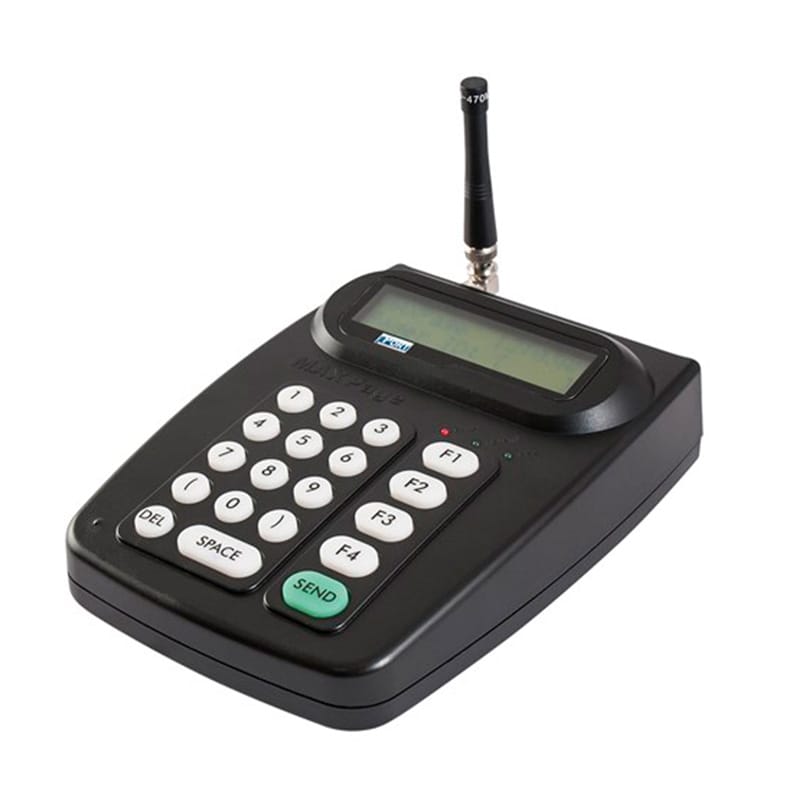

MAXPage Desktop Transmitter

The MAXPage system includes: 1,000 pager capacity, 2-5 watt internal transmitter, numeric keypad, backlit LCD, user programmable F1- F4 buttons for one touch paging of common alpha text pager messages, 4 alarm contact points with pre-programmed messages, power supply and antenna.

Options include, keyboard for custom alphanumeric paging capability. The RS232 serial interface with tap, comp 1 and comp 2 protocols enables you to connect with nurse call, fire and security systems for automatic pager notification, internal microphone for tone & voice paging capability and PBX interface with 10 user definable alpha text messages for paging from any telephone.

The iPort MAXPage desktop paging system is easy to install and operate. Simply plug into any standard wall outlet and you are ready to page. The backlit LCD makes it easy to page from a variety of sources including the numeric keypad, F1- F4 keys with pre-programmed alpha text pager messages, 4 alarm contact points and optional keyboard for custom alpha text paging.

The iPort MAXPage system will provide you with many years of reliable paging service.

MAXPage Desktop Transmitter:

• Easy to use and Install
• 1,000 Pager Capacity
• Alphanumeric, Numeric, Tone & Voice and Coaster Pager
• 2-5 Watt Internal Transmitter – VHF & UHF
• 3 dB Gain Rubber Duck Antenna
• Available in VHF And UHF Frequency Bands
• Nurse Call and Fire & Security System Interface
• 4 Pre-Programmed Alpha Text Paging Buttons
• Group Call Paging
• 4 Contact Alarm Paging Contact Closure Points
• 1 Year Warranty

OPTIONS

• Telephone Interface W / 10 Preprogrammed Alpha Text Messages
• External Keyboard
• Rs232 Input W/ Tap, Comp 1 & 2 Paging Protocols
• Internal Microphone for Tone & Voice

BENEFITS

• Economical
• Eliminates Noisy Overhead Paging
• Notifies People Quickly and Discretely
• Improves Productivity

Choice Of Pagers:

• Choice of Numeric, Alphanumeric or Tone & Voice Pagers

MAXPage Installation & Configuration Guide
